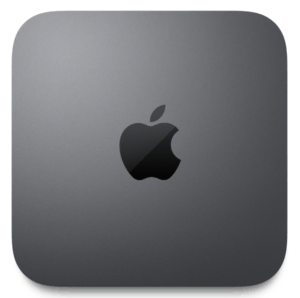

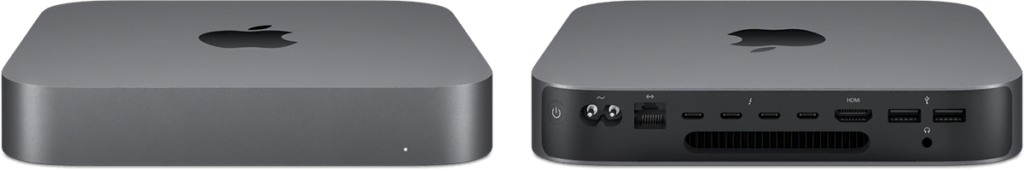

Mac mini (2018)

The first Mac mini model that has a Type-C input. The memory of this model cannot be changed later because the SSD is attached to the motherboard.

Mac mini (2018) Technical Specifications

Model Identifier

• Macmini8,1

Color

• Space Gray

Memory

8GB of 2666MHz DDR4 SO-DIMM memory

Configurable to: 16GB, 32GB, or 64GB

Storage

• 128 GB
• 256 GB
• 512 GB
• 1 TB
• 2 TB

Processor

4-Core

• 3.6GHz quad-core Intel Core i36MB shared L3 cacheConfigurable to: 6-Core
  3.2GHz 6-core Intel Core i7
  Turbo Boost up to 4.6GHz
  12MB shared L3 cache

6-Core

• 3.0GHz 6-core Intel Core i5Turbo Boost up to 4.1GHz9MB shared L3 cacheConfigurable to: 6-Core
  3.2GHz 6-core Intel Core i7
  Turbo Boost up to 4.6GHz
  12MB shared L3 cache

Graphics

• Intel UHD Graphics 630

Display Support

• Support for the following combination of maximum concurrent display setups:

  • Up to three displays:

    • Two displays with 4096-by-2304 resolution at 60Hz connected via Thunderbolt 3 plus one display with 4096-by-2160 resolution at 60Hz connected via HDMI 2.0
  • Up to two displays:

    • One display with 5120-by-2880 resolution at 60Hz connected via Thunderbolt 3 plus one display with 4096-by-2160 resolution at 60Hz connected via HDMI 2.0
• Thunderbolt 3 digital video output supports
  • Native DisplayPort output over USB-C
  • Thunderbolt 2, DVI, and VGA output supported using adapters
• HDMI 2.0 display video output
  • Support for one display with 4096-by-2160 resolution at 60Hz
  • DVI output using HDMI to DVI Adapter

Audio

• Built-in speaker
• 3.5 mm headphone jack
• HDMI 2.0 port supports multichannel audio output

Size and Weight

• Height: 1.4 inches (3.6 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight: 2.9 pounds (1.3 kg)

Connections and Expansion

• Four Thunderbolt 3 (USB-C) ports with support for:
  • DisplayPort
  • Thunderbolt 3 (up to 40 Gb/s)
  • USB 3.1 Gen 2 (up to 10 Gb/s)
  • Thunderbolt 2, HDMI, DVI, and VGA are supported using adapters
• Two USB-A ports (up to 5Gb/s)
• HDMI 2.0 port
• Gigabit Ethernet port (configurable to 10Gb Ethernet)
• 3.5 mm headphone jack

 Apple Documentation: https://support.apple.com/en-us/111912
