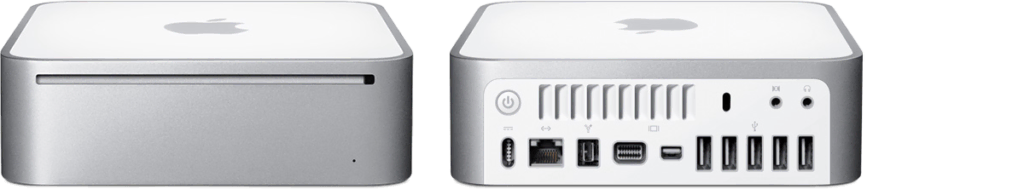

Mac mini (Late 2009)
09/05/2026
Mac mini (Late 2009) Technical Specifications
Model Identifier
- Macmini3,1
Processor and Memory
- 2.26GHz, 2.53GHz, or 2.66GHz Intel Core 2 Duo processor
- 3MB on-chip shared L2 cache running 1:1 with processor speed
- 1066MHz frontside bus
- 2GB (two 1GB SO-DIMMs) or 4GB (two 2GB SO-DIMMs) of 1066MHz DDR3 SDRAM; two SO-DIMM slots support up to 4GB
Display Support
- NVIDIA GeForce 9400M graphics processor with 256MB of DDR3 SDRAM shared with main memory
- Extended desktop and video mirroring: Simultaneously supports up to 1920 by 1200 pixels on a DVI or VGA display; up to 2560 by 1600 pixels on a dual-link DVI display using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
- Mini-DVI port
- DVI output using Mini-DVI to DVI Adapter (included)
- VGA output using Mini-DVI to VGA Adapter (sold separately)
- Mini DisplayPort output
Size and Weight
- Height: 2 inches (5.08 cm)
- Width: 6.5 inches (16.51 cm)
- Depth: 6.5 inches (16.51 cm)
- Weight: 2.9 pounds (1.31 kg)
Last OS Compatible
macOS El Capitan
Apple Documentation: https://support.apple.com/en-us/112482
