Mac mini M4 (2024)
The smallest Mac mini model with the Apple M4 chip.

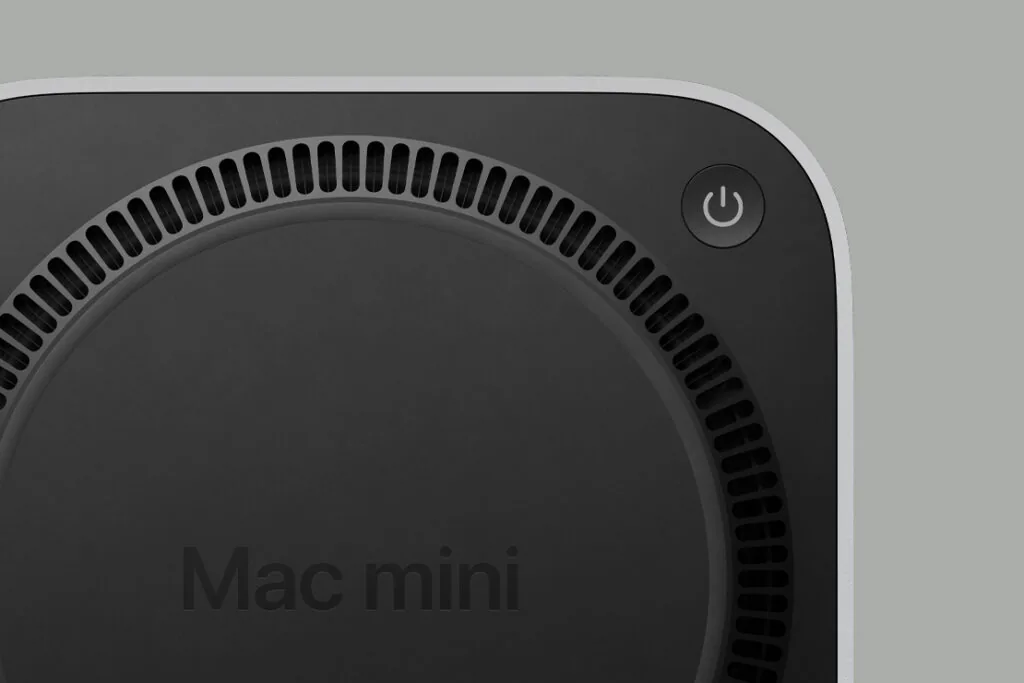

Apple placed the power button at the bottom of the Mac mini on the 2024 model.
Mac mini M4 Technical Specifications
Model Identifier
- Mac16,11
- Mac16,10
Chip
- Apple M4 chip
- 10-core CPU with 4 performance cores and 6 efficiency cores
- 10-core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 120GB/s memory bandwidth
- Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
- AV1 decode
- Apple M4 Pro chip
- 12-core CPU with 8 performance cores and 4 efficiency cores
- 16-core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 273GB/s memory bandwidth
- Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
- AV1 decode
- Configurable to: M4 Pro with 14‑core CPU and 20‑core GPU
Display Support
- Apple M4 chip
- Simultaneously supports up to three displays:
- Up to three displays: Two displays with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 5K resolution at 60Hz over Thunderbolt or 4K resolution at 60Hz over HDMIUp to two displays: One display with up to 5K resolution at 60Hz over Thunderbolt and one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz over Thunderbolt or HDMI
- Thunderbolt 4 digital video output
- Support for native DisplayPort 1.4 output over USB-C
- Simultaneously supports up to three displays:
- Apple M4 Pro chip
- Simultaneously supports up to three displays:
- Up to three displays: Three displays with up to 6K resolution at 60Hz over Thunderbolt or HDMIUp to two displays: One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz over Thunderbolt or HDMI
- Thunderbolt 5 digital video output
- Support for native DisplayPort 2.1 output over USB‑C
- HDMI display video output
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz (M4 and M4 Pro)
- Simultaneously supports up to three displays:
Size and Weight
- Height: 2.0 inches (5.0 cm)
- Width: 5.0 inches (12.7 cm)
- Depth: 5.0 inches (12.7 cm)
- Weight (M4): 1.5 pounds (0.67 kg)
- Weight (M4 Pro): 1.6 pounds (0.73 kg)
Apple Documentation: https://support.apple.com/en-us/121555
